Special dimensions are available upon request
Advantages
High hardness, low wear loss
Excellent high temperature/heat resistance
Acid/Alkaline corrosion-resistant, stable chemical property, oxidation resistant
Smaller density than steel, lighter in weight
Firm bonding to the surface of pipe/pumps
| Technical Property | 92 Series | 95 Series | 99 Series |
| AL2O3 (%) | ≥92 | ≥95 | ≥99 |
| Moh's Hardness | 9 | 9 | 9 |
| Moisture Content (%) | ≤0.02 | ≤0.02 | ≤0.02 |
| Fracture Toughness (n/mm) | 40 | 42 | 48 |
| Bending Strength (Mpa) | 255 | 275 | 300 |
| Wear Loss (%) | ≤0.1 | ≤0.1 | ≤0.1 |
| Bulk Density (g/cm3) | ≥3.6 | ≥3.65 | ≥3.8 |
| Dimension | Length (mm) | Width (mm) | Height (mm) | |
| Plain Lining Plate | 50*25 | 50 | 25 | 5~10 |
| 50*50 | 50 | 50 | 5~15 | |
| 100*100 | 100 | 100 | 6.5~15 | |
| 150*100 | 150 | 100 | 6/12/25/50 | |
| Square Lining Piece | 10*10 | 10 | 10 | 3~10 |
| 17.5*17.5 | 17.5 | 17.5 | 4~10 | |
| 20*20 | 20 | 20 | 3 | |
| 23.7*23.7 | 23.7 | 23.7 | 5~15 | |
| Hexgonal Lining Piece (Mosaic) | 12*3 | 12 | 12 | 3 |
| 12*6 | 12 | 12 | 6 | |
| 12.5*12 | 12.5 | 12.5 | 12 | |

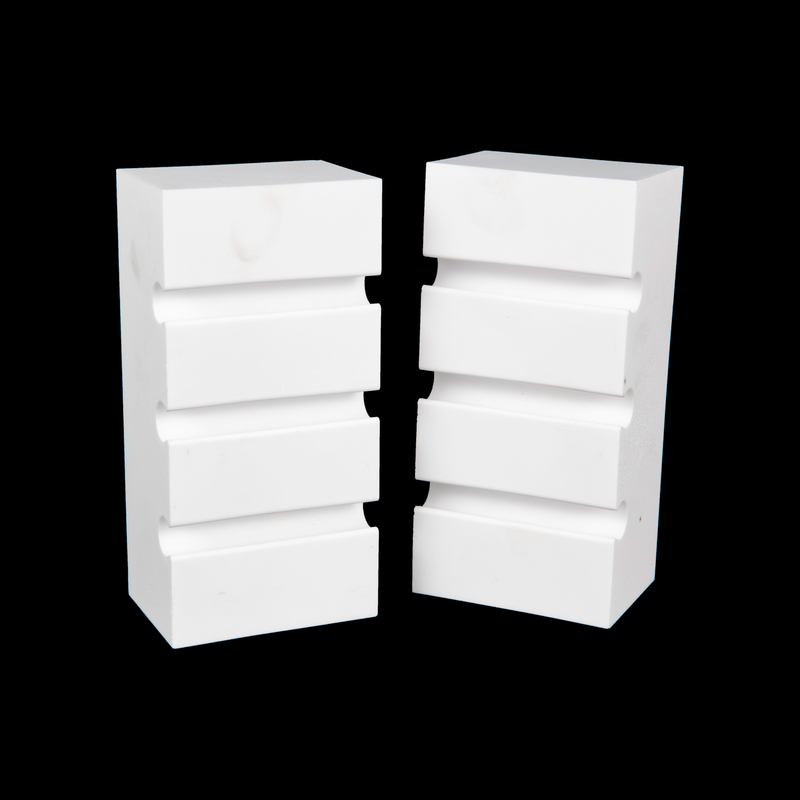

| Dovetail Groove | 142*93.5*50 | 142 | 93.5 | 50 |
| Irregular Parts | End flat brick | 150 | 50 | 40~90 |
| Circle brick | 150 | 50/ 45 | 40~90 | |
| Half end flat brick | 75 | 50 | 40~90 | |
| Half circle brick | 75 | 50/ 45 | 40~90 | |
| Flake brick | 150 | 25/ 22.5 | 40~90 |
